Operating Voltage
2.4~3.6V
Operating Current
500μA
OTP
4k Bytes
SRAM
256 Bytes
ADC ENOB
20.6bits@250sps
Gain = 1
Gain = 1

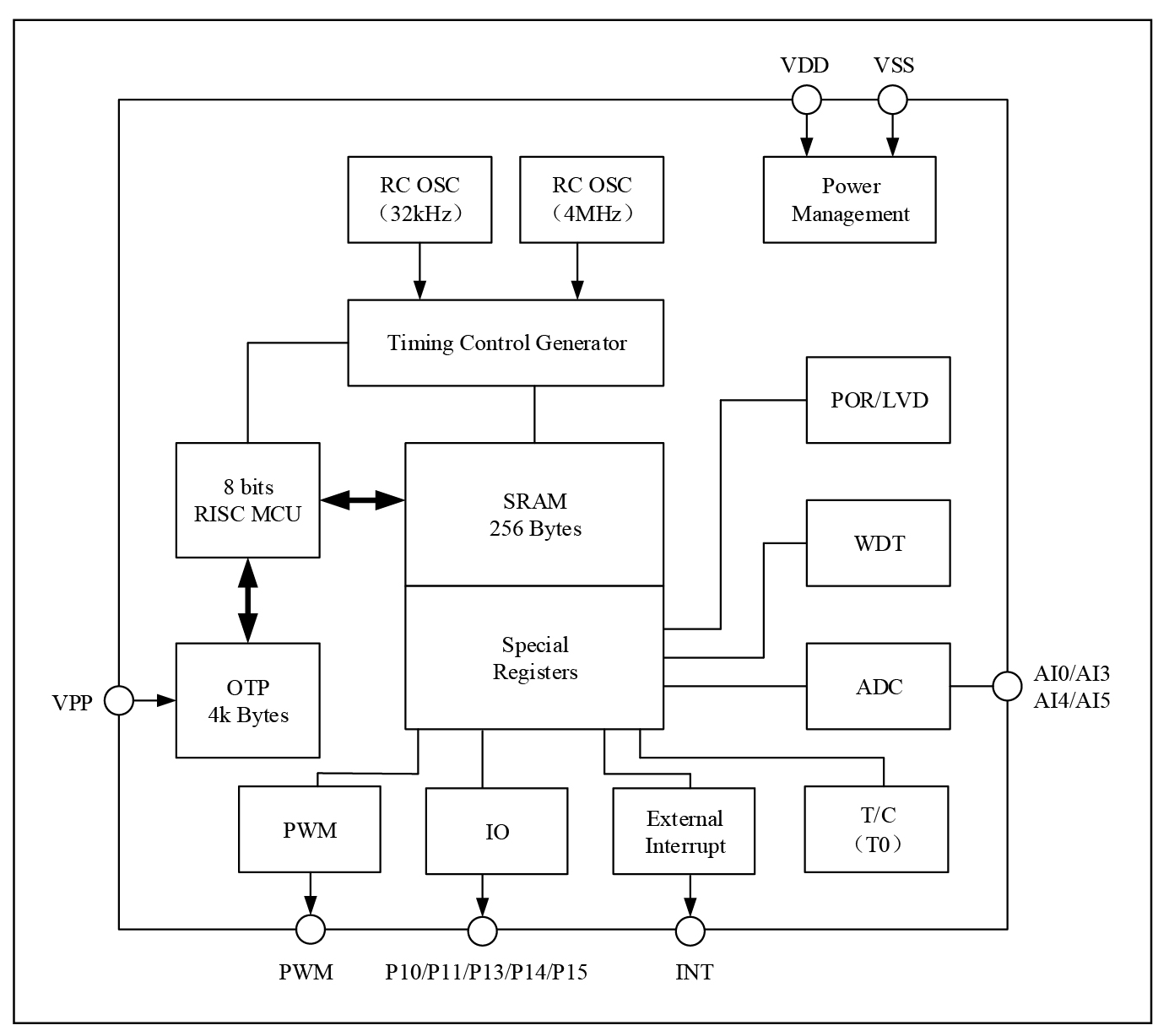

The IC is a SoC product with 24 bits high-precision ADC and 4k Bytes OTP program memory. The IC was designed with ultra low power technology. Operating at 3V supply and 2MHz clock rate that originates from 4MHz internal RC oscillator, the total typical operating current is only 500uA. Such low current consumption is very suitable for battery powered signal measurement applications.
Three working modes are provided so users can select the optimum choice between speed and power. They are normal mode, standby mode, and sleep mode.
High precision ADC, ENOB=20.6bits@250sps, 2 differential or 4 single-ended inputs (to VSS)
8-bit RISC low power MCU, 49 instructions and 6 stack levels. The MCU current consumption is 300μA typically at 3V and 2MHz operating clock rate. Standby current is 2μA at 32kHz clock, and 1μA at sleep typically
4k Bytes OTP program memory storage, 256 Bytes SRAM data storage
Internal 4MHz and 32kHz RC oscillators
1 channel 8bits PWM output
WDT enhances reliability
Schmitt trigger input, pull up resistor selectable
Power failure detection circuit and power-on reset circuit
Operating voltage range： 2.4~3.6V
Operating temperature range： -40~85℃
