Operating Voltage
2.4~3.6V
Operating Current
850μA
ADC ENOB
18.5bits@8sps
Gain = 100
Gain = 100
Peripherals
--
Package
SOP16

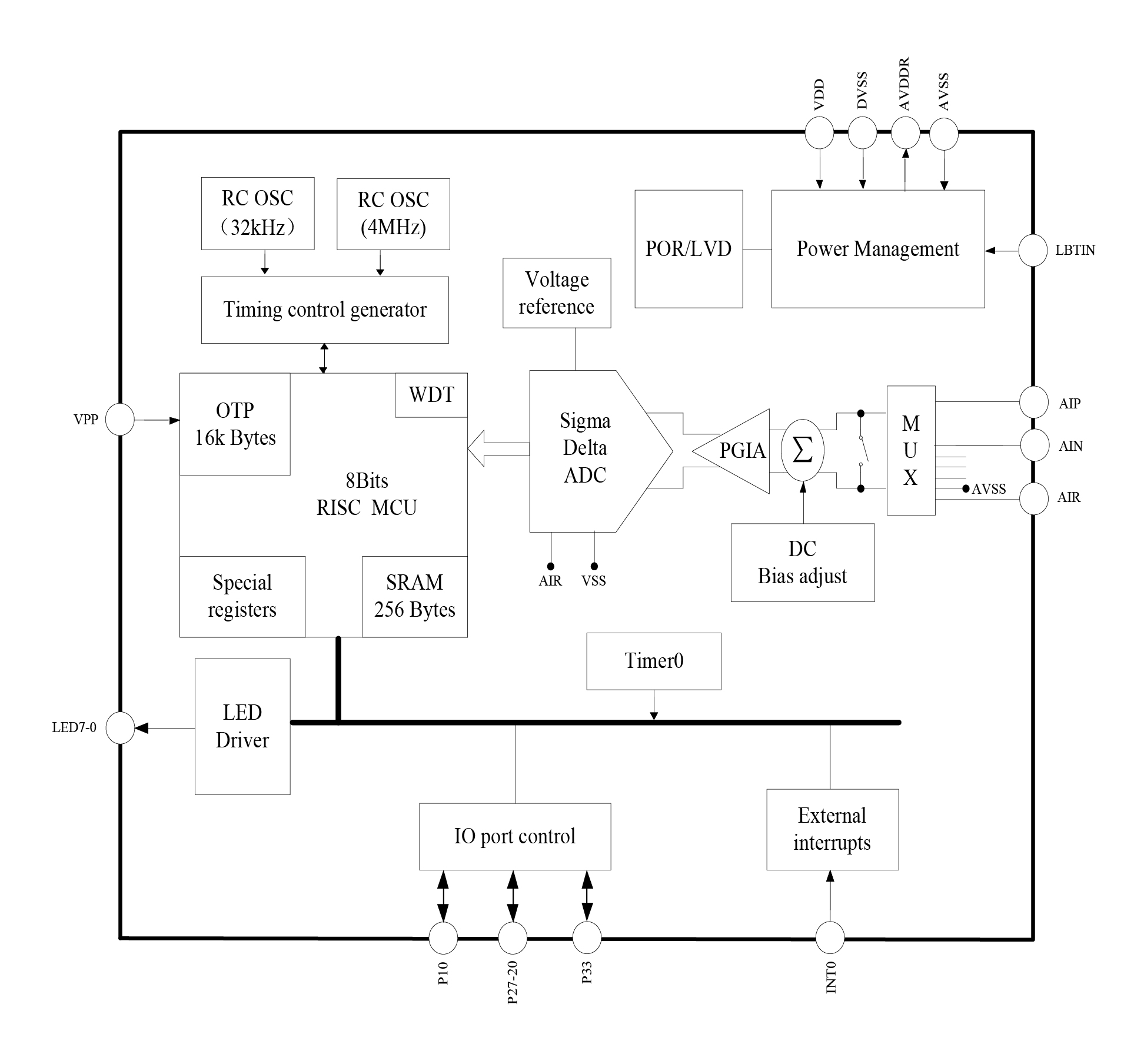

The SD8108X is a CMOS SoC with built-in 20 bits ADC and 16k Bytes OTP memory. Very few external components are needed to implement body weight scale or kitchen scale with LED displays.
The IC was designed with ultra low power technology. Operating at 3V supply and 2MHz clock rate that originates from 4MHz internal RC oscillator, the total typical operating current is 850μA (external transducer driving and LED currents not included).
Three working modes are provided so users can select the optimum choice between speed and power. They are normal mode, standby mode, and sleep mode.
High precision ADC, 17.4bits ENOB at 8sps and 200x Gain, 1 differential or 3 single-ended inputs, with offset calibration capability
Low noise, high input impedance preamplifier with selectable gain: 1, 12.5, 50, 100, or 200
8 bits RISC ultra low power MCU, 49 instructions and 6 stack levels. The MCU current consumption is 600uA typically at 3V and 2MHz operating clock rate, 2μA at standby and 32kHz clock, and 1μA at sleep
16k Bytes OTP, 256 Bytes SRAM
Built-in OTP with low programming voltage at 2.4~3.6V, can replace external EEPROM
Internal RC oscillator. No external clock source needed
8 bits interrupt timer
Built-in temperature sensor, supports single point calibration
8 LED ports that can drive up to 56 LEDs, 72mA sink current, source current selectable at 4.5/6/7.5/9/10.5/12mA, LED duty cycle selectable
Selectable voltage source for external transducer excitation: 2.4V/2.6V/2.9V/3.3V
Flexible battery voltage detection: 2.0~3.3V
Schmitt trigger input, pull up resistor selectable
Watch Dog Timer
Low voltage detection and power on reset circuit
Operating voltage range: 2.4~3.6V
Operating temperature range: -40~85?C
