Operating Voltage
2.7~5.5V
Temperature Measurement Range
-55~+125℃
Typical Error @3.0V
±1.5℃@-40~+100℃
±2.0℃@-55~+125℃
±2.0℃@-55~+125℃
Compatible
TMP03
Package
TO-92/SOP8

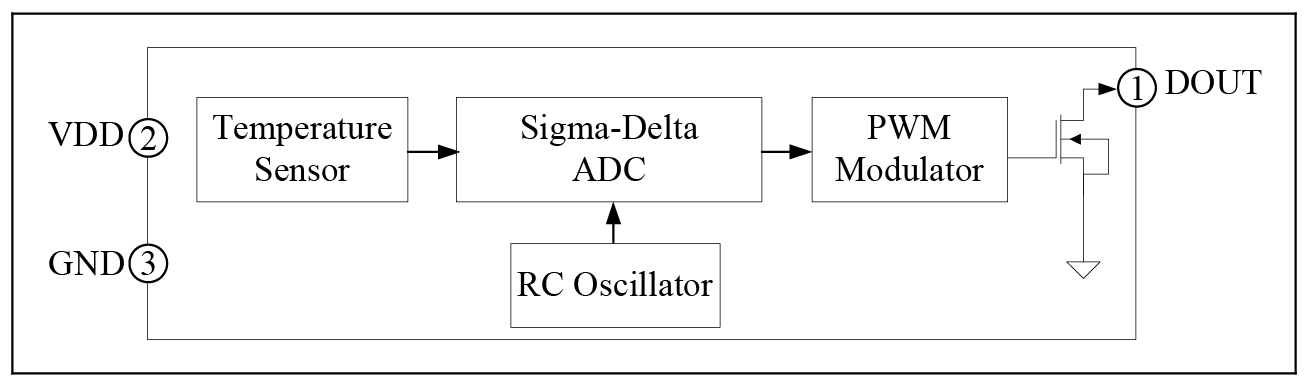

SD5003 is a highly accurate temperature measurement IC with digital PWM output. An internal sensor produces a voltage signal that is proportional to temperature. It is then digitized by a built-in ADC, and modulated into a PWM waveform. The typical error is ± 0.8℃ for the -40~+100℃ range, and ±1.0℃ for the -55~+125℃ range.
Output pin DOUT is open drain which facilitates multi-voltage system applications.
Open drain PWM output
PWM output mode: fixed period, duty cycle varies with temperature
±1.5°C maximum error at -40~+100℃ range
±2.0°C maximum error at -55~+125℃ range
170μA typical operating current at 3V supply
2.7~5.5V power supply range
SOP8 or TO-92 package, pin compatible with TMP03
Intelligence Agriculture
Industrial Temperature Measurement
Water Temperature Sensor
