High precision, low power consumption, low cost, and reliability
High stability that satisfies the requirements of the industrial environment
High precision, low power consumption, low cost, and reliability
High stability that satisfies the requirements of the industrial environment

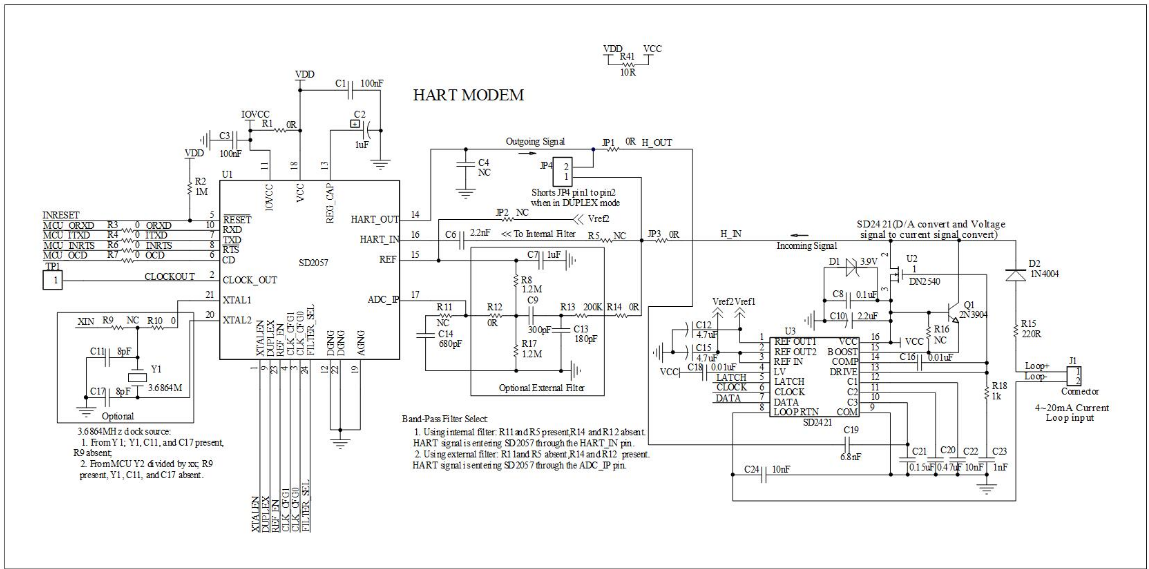

Meets HART physical layer requirements
Complies with Bell202 standard carrier 1200Hz and 2200Hz
Integrated receiving filter with minimal external components required
Buffered HART output for drive capability
UART port
Operating voltage range: 2.7~5.5V
Low power consumption, 112μA maximum supply current in transmit mode
Operating temperature range: -55℃-125℃
RoHS compliant
16 bits resolution and monotonicity
±0.01% integral nonlinearity
3V/3.3V/5V selectable voltage source
2.5V & 1.25V precision reference
520uA maximum quiescent current
HART compatible
Flexible serial interface
Flexible alarm current output
Short circuit protection and over current protection
16 pins SOIC package
Operating temperature range: -40℃ to +85℃
